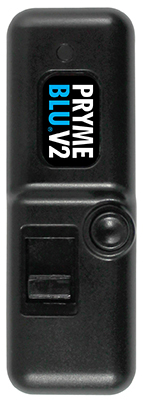

BT-500-M11-V2

Motorola (TRBO)- NEW UPGRADED (Version 2) BT-500-M11 Wireless headset Adapter for Motorola TRBO XPR3300/3500 series.

MSRP Starting at $135.00

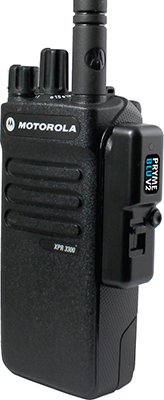

Recently UPGRADED (now called V2 - Version 2) Wireless Adapter (Dongle) fits Motorola XPR3300/3500 series (TRBO) Two Way Radios

Now compatible with all our "Z" version LE PTT Buttons! You can still use the large rechargeable BT-PTT2 but now also you can use the much lower cost BT-PTT-Z series BTLE PTT buttons. BT-PTT-Z, BT-PTT-ZU (FOB, STRAP or RING) do not need to be recharged. Instead they will work for up to 2 years on a replacable Coin Cell battery. The PRYMEBLU® Adapter allows you to use a compatible wireless headset or other audio accessory with your two-way radio. The PRYMEBLU® Adapter is compatible with thousands of off the shelf consumer audio accessories and pairs easily, allowing you to operate wirelessly.

New V2 Chip adds BTLE capability allowing use of the Z Mini and ZU Super Mini PTT buttons!


View Larger Image
  • Overview
  • Buy Now
  • Downloads

POWERED BY RADIO - NO CHARGING REQUIRED!

  • Compatible with thousands of readily available Wireless headsets and other audio accessories. (audio accessories not included)
  • Easy pairing process. Stores paired connection to the wireless headset even if the Radio is powered off or adapter is removed from the two-way radio.
  • Several Push-To-Talk options: use the PTT button on the PRYMEBLU adapter to initiate transmissions, or use one of 4 different optional PRYME BT-PTT Wireless PTT switches.

SPECIFICATIONS:

Chip Audio Line Input : 350mV rms (max.)
Audio Output : 20 mV rms
Transmitted Power : 1 dBm (typ.)
Receiver Sensitivity : -82 dBm (typ.)
PTT function built-in
Power class 2,10 meters
Display : Two Color LED
Protocol Support HSP, HFP.
DC Input : 5 Vdc (std.)
DC Current : 18 mA (avg.)




BT-PTT-ZU SUPER MINI
BT-PTT-ZU (Super Mini) Wireless PTT switch for PTT apps. No charging required. Available in 3 different packages.
View Now
BT-PTT-ZU (Super Mini) Wireless PTT switch for PTT apps. No charging required. Available in 3 different packages.
Price: $35.00
BT-PTT-Z MINI
BT-PTT-Z (Mini) Wireless PTT switch for PTT apps. and V2 Radio Adapters. No charging required. Works for up to 2 years on easy to change coin cell battery.
View Now
BT-PTT-Z (Mini) Wireless PTT switch for PTT apps. and V2 Radio Adapters. No charging required. Works for up to 2 years on easy to change coin cell battery.
Price: $35.00
BTH-550-MAX
NEW BTH-550-MAX - Wireless Speaker Microphone with ROTARY volume control and built-in wireless PTT
View Now
NEW BTH-550-MAX - Wireless Speaker Microphone with ROTARY volume control and built-in wireless PTT
Price: $175.00 $135.00
BTH-700/800/900-MAX
NEW MAX series Wireless Ear Muffs - Rugged Over-the-head headset with noise-cancelling boom mic and padded speaker. Includes USB charging cable and wall changer.
View Now
NEW MAX series Wireless Ear Muffs - Rugged Over-the-head headset with noise-cancelling boom mic and padded speaker. Includes USB charging cable and wall changer.
Price: $300.00
List Price: $135.00
ADD A WIRELESS HEADSET OR PTT BUTTON:
Quantity:
ADD TO MY FAVORITES Add To Registry

Name Version Date Size
MANUAL-BTadapter-multipin-reg 2021-03-01
