BT-500-M11-V2

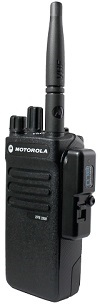

Motorola (TRBO)- BT-500-M11-V2 Wireless headset Adapter for Motorola TRBO XPR3300/3500 series.
Recently UPGRADED (now called V2 - Version 2) Wireless Adapter (Dongle) fits Motorola XPR3300/3500 series (TRBO) Two Way Radios Now compatible with all our "Z" version LE PTT Buttons! You can still use the large rechargeable BT-PTT2 but now also you can use the much lower cost BT-PTT-Z series BTLE PTT buttons. BT-PTT-Z, BT-PTT-ZU (FOB, STRAP or RING) do not need to be recharged. Instead they will work for up to 2 years on a replacable Coin Cell battery. The PRYMEBLU® Adapter allows you to use a compatible wireless headset or other audio accessory with your two-way radio. The PRYMEBLU® Adapter is compatible with thousands of off the shelf consumer audio accessories and pairs easily, allowing you to operate wirelessly. New V2 Chip adds BTLE capability allowing use of the Z Mini and ZU Super Mini PTT buttons!
POWERED BY RADIO - NO CHARGING REQUIRED!
- Compatible with thousands of readily available Wireless headsets and other audio accessories. (audio accessories not included)
- Easy pairing process. Stores paired connection to the wireless headset even if the Radio is powered off or adapter is removed from the two-way radio.
- Several Push-To-Talk options: use the PTT button on the PRYMEBLU adapter to initiate transmissions, or use one of 4 different optional PRYME BT-PTT Wireless PTT switches.
SPECIFICATIONS:
Chip Audio Line Input : 350mV rms (max.)
Audio Output : 20 mV rms
Transmitted Power : 1 dBm (typ.)
Receiver Sensitivity : -82 dBm (typ.)
PTT function built-in
Power class 2,10 meters
Display : Two Color LED
Protocol Support HSP, HFP.
DC Input : 5 Vdc (std.)
DC Current : 18 mA (avg.)
